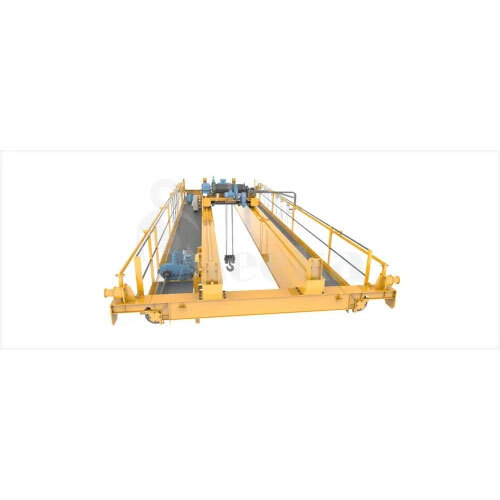

Electric Overhead Travelling Crane

Name: Electric Overhead Travelling Crane
Brand: Meeka Machinery Pvt. Ltd.
Price: 1210000 INR
Availability: InStock

Price 1210000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Electric Overhead Travelling Crane Specification

Traveling Speed
20 m/min

Color
Yellow (Standard), Custom Options

Electric Hoist
Included

Gearbox
Helical or Planetary Type

Emergency Stop
Provided

Brake
Electromagnetic Brake

Application
Industrial, Warehouses, Factories, Shipyards

Condition
New

Load Capacity
1-20 Ton

Max. Lifting Height
6-18 m

Max. Lifting Load
Up to 20 Ton

Rated Lifting Moment
Customized as per design

Span
5-30 m

Lifting Mechanism
Wire Rope Electric Hoist / Chain Hoist

Lifting Speed
5 m/min

Operating Mode
Cab Control, Pendant Control, Remote Control

Power Supply
3 Phase AC

Voltage
380V/415V/440V, 50/60 Hz

Protection Grade
IP54/IP55 Motor & Control Panel

End Carriage
Modular Type, Precisely Machined

Temperature Range
-20C to +50C

Bridge Material
High Strength Steel

Control System
Push Button/Remote/ Cabin

Motor Type
Squirrel Cage, Triple Phase

Painting/Finish
Corrosion Resistant Primer & Finish Coat

Noise Level
75 dB(A)

Wheel Material
Forged Alloy Steel

Working Class
M5, M7 (ISO Standards)

Limit Switches
Over Hoisting & Over Traveling Limit Switches

Electric Overhead Travelling Crane Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
30 Days

Packaging Details
Wooden Boxes & Pallets.

Main Export Market(s)
Middle East, Africa

Main Domestic Market
All India

Certifications
An ISO 9001:2015 Certified Company.

Electric Overhead Travelling Crane About

Defined as Electric Overhead Traveling Crane, EOT Crane is extensively demanded in industries for simple material handling applications. It is a common type of crane that mainly comprises of parallel runways along with traveling bridge. Mainly, the proposed range is designed to be operated by electricity and also does not require any kind of cabin or control pendant. Depending on its supreme characteristics, this range has found its usage in workshop, warehouse and stock ground in different industry and mining sector. Electric Overhead Travelling Crane is available to our clients at cost effective rates.

Features of Electric Overhead Travelling Crane:

Noise free operation
Easy to install
Longer working life

Superior Engineering for Maximum Performance

Crafted using high strength steel and forged alloy steel wheels, our Electric Overhead Travelling Crane ensures structural integrity and smooth, reliable operation. The modular, precisely machined end carriages and robust design make it suitable for heavy-duty industrial use while maintaining a low noise level of 75 dB(A). High-quality corrosion resistant paint further extends the equipment's lifespan, ensuring peak performance in demanding environments.

Flexible and Safe Operation Modes

Choose from cab control, pendant push button, or wireless remote operation for effortless and versatile crane control. Compliant with ISO M5 and M7 working classes, the crane is equipped with over hoisting and over traveling limit switches, an emergency stop function, and electromagnetic brakes to ensure utmost operational safety. Applicable in warehouses, factories, and shipyards, the system is tailored for both convenience and protection.

Customizable Solutions for Varied Needs

Accommodating a maximum span of 30 meters and lifting loads up to 20 tons, our cranes are customizable to match specific operational requirements, including color, lifting mechanism, lifting speed, and rated lifting moment. Choose between wire rope or chain hoist mechanisms, and benefit from integrated electric hoist systems and high protection grades (IP54/IP55), all supported by export-quality standards.

FAQ's of Electric Overhead Travelling Crane:

Q: How is the Electric Overhead Travelling Crane controlled during operation?

A: This crane offers three control options: pendant push button control, remote control, and cabin operation, allowing operators to choose the most suitable or convenient mode for their workspace and application.

Q: What environments are suitable for installing this crane?

A: The crane is ideal for industrial environments, warehouses, factories, and shipyards. It is designed with corrosion-resistant coatings and can operate in temperatures ranging from -20C to +50C, making it suitable for a wide range of challenging indoor and outdoor settings.

Q: What are the main benefits of using high strength steel and forged alloy steel in this crane?

A: High strength steel for the bridge and forged alloy steel wheels provide exceptional durability, load-bearing capacity, and resistance to wear, ensuring the crane can reliably handle heavy-duty lifting over an extended service life.

Q: When should over hoisting and over traveling limit switches be used?

A: These safety limit switches are always active during crane operation to prevent the hoist from moving beyond its designated upper or travel limits, thereby safeguarding against potential accidents and equipment damage.

Q: What is the process for customizing the crane to specific requirements?

A: Customization can include span, lifting height, load capacity, color, and lifting mechanism (wire rope or chain hoist). After reviewing operational needs, specifications are finalized and tailored as per design, ensuring the crane fits the intended application perfectly.

Q: How does the crane ensure operator safety during use?

A: Multiple safety features are integrated, including electromagnetic brakes, emergency stop, limit switches for over hoisting and over traveling, and a protection grade of IP54/IP55 for motors and control panels, minimizing risks during operation.

Q: What power supply is needed for the crane, and can it be operated internationally?

A: The crane operates on a 3-phase AC supply and supports voltages of 380V, 415V, or 440V at 50 or 60 Hz, making it adaptable for use in various countries and industrial facilities worldwide.
